Applications

Where Geocell
Performs Best

From riverbank stabilization to mountain road construction — SYLVAGEO geocells adapt to every civil engineering challenge with proven results across 15+ major projects.

Slope Protection Channel Protection Load Support Retaining Walls Case Studies
Application 01

Slope & Shoreline Protection

SYLVAGEO geocells lock surface soil in place, preventing erosion on cut slopes, natural hillsides, and riverbank embankments. The 3D confinement matrix dramatically increases soil tensile and shear strength.

  • Eliminates surface wash-out during heavy rainfall
  • Supports vegetation for natural aesthetic restoration
  • Adapts to foundation micro-deformation without cracking
  • Reduces slope maintenance by 70%+ vs. concrete facing
  • Geotextile integration prevents piping and sub-surface erosion
Cell Depth: 75–200 mm
Fill: Soil / Gravel
Vegetation-Compatible
Geocell Slope Protection Installation

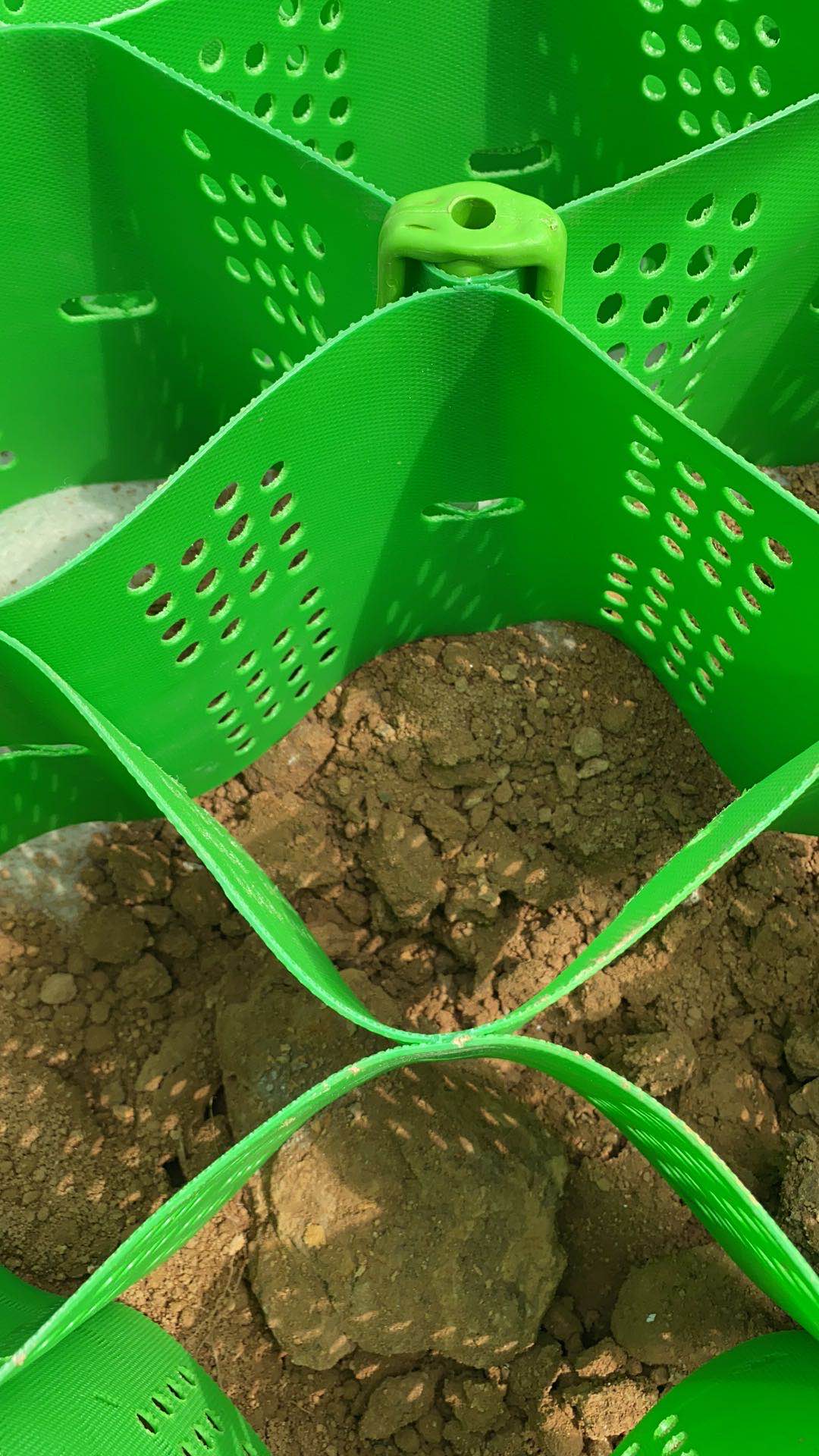

Geocell Channel Protection Detail
Application 02

Channel & River Protection

SYLVAGEO geocell liners resist high-velocity water flow in irrigation canals, drainage channels, and natural rivers. Proven to withstand peak flow velocities of 1.8+ m/s in continuous operation.

  • Prevents bed scour and sidewall erosion
  • Handles intermittent and continuous flow regimes
  • Geotextile base prevents piping and sediment migration
  • Absorbs impact energy from flood surges
  • Regulates flow geometry — modifiable after installation
Flow: Up to 1.8+ m/s
Fill: Gravel / Concrete
Anti-Seepage
Application 03

Load Support & Foundation

On soft, wet, and unstable ground where conventional paving is impractical, SYLVAGEO geocells create a stable load-bearing platform. Field-tested to support 60-ton trucks on previously impassable soft ground.

  • 10× cyclic load capacity vs. unreinforced ground
  • 30% reduction in local and overall settlement
  • Reduces load stress concentration on subgrade
  • Immediate installation — no curing time
  • Removable for temporary road applications
Load: 60+ ton verified
Fill: Crushed Stone / Sand
Immediate Traffic

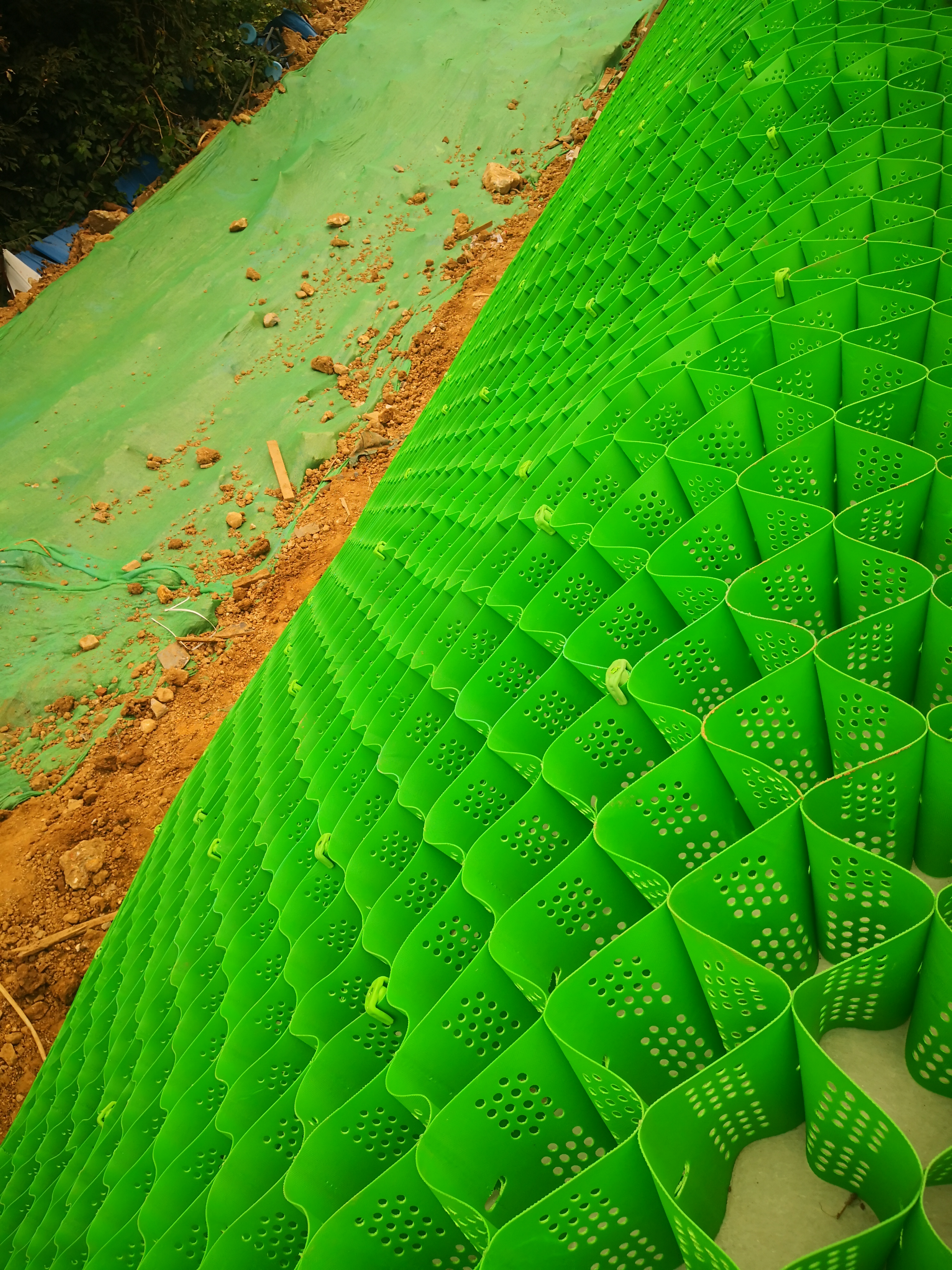

Geocell Load Support Installation

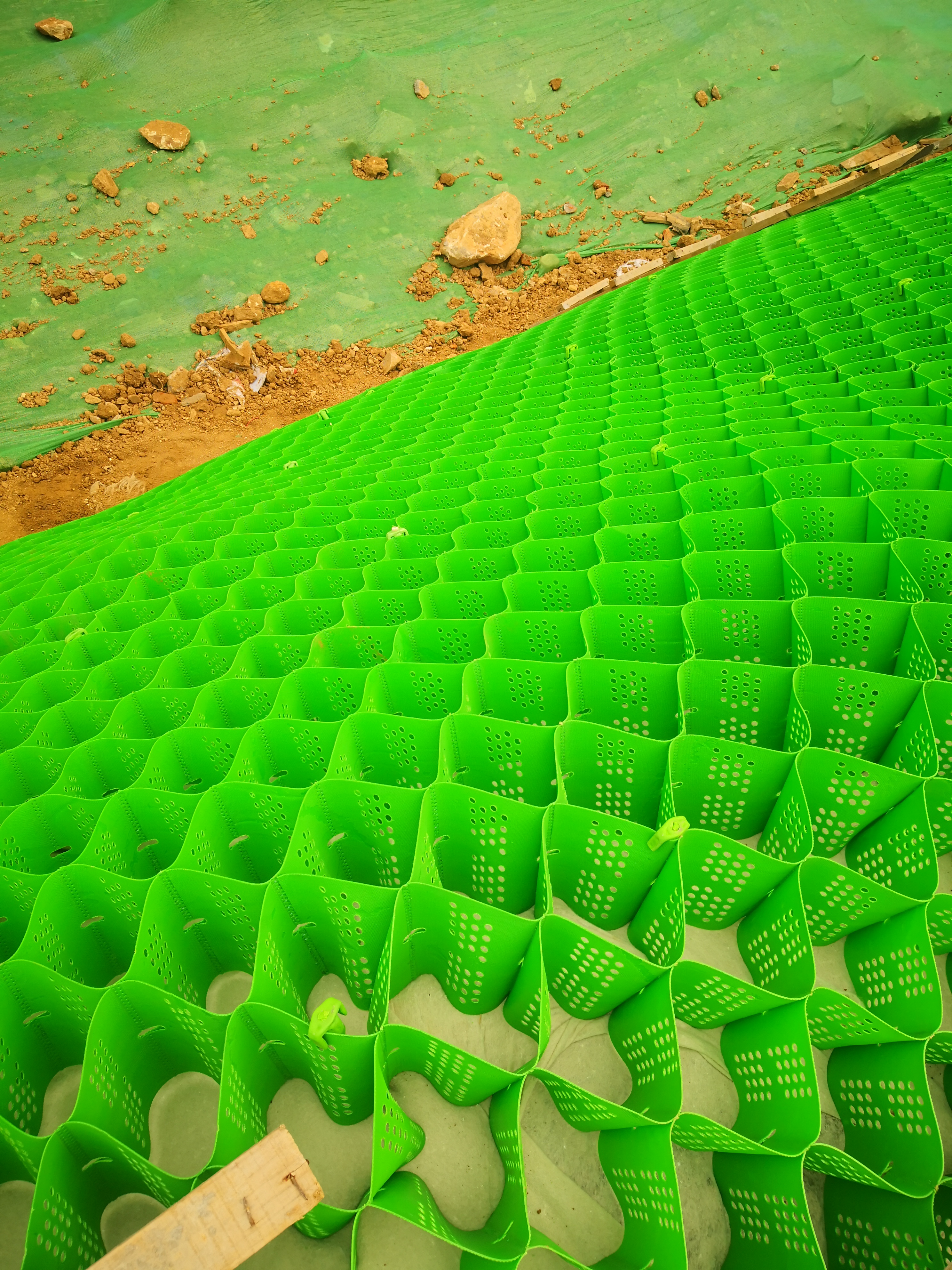

Geocell Retaining Wall Installation
Application 04

Retaining Walls & Land Retention

SYLVAGEO geocell retaining walls solve slope stability challenges on steep grades — replacing rigid concrete structures with a flexible, earthquake-resistant system that tolerates up to 30 cm settlement without failure.

  • Allows 30 cm differential settlement — vs. 2.5 cm for concrete
  • Inherently earthquake-resistant flexible structure
  • Green-facing option integrates with natural landscapes
  • Modular system — expandable and repairable
  • 50-year design life, zero maintenance required
Settlement: ±30 cm
Seismic-Resistant
Green Facings
Case Studies

Proven in the Field

Every project listed below is a verified installation by SYLVAGEO or licensed partners. Performance data recorded post-completion.

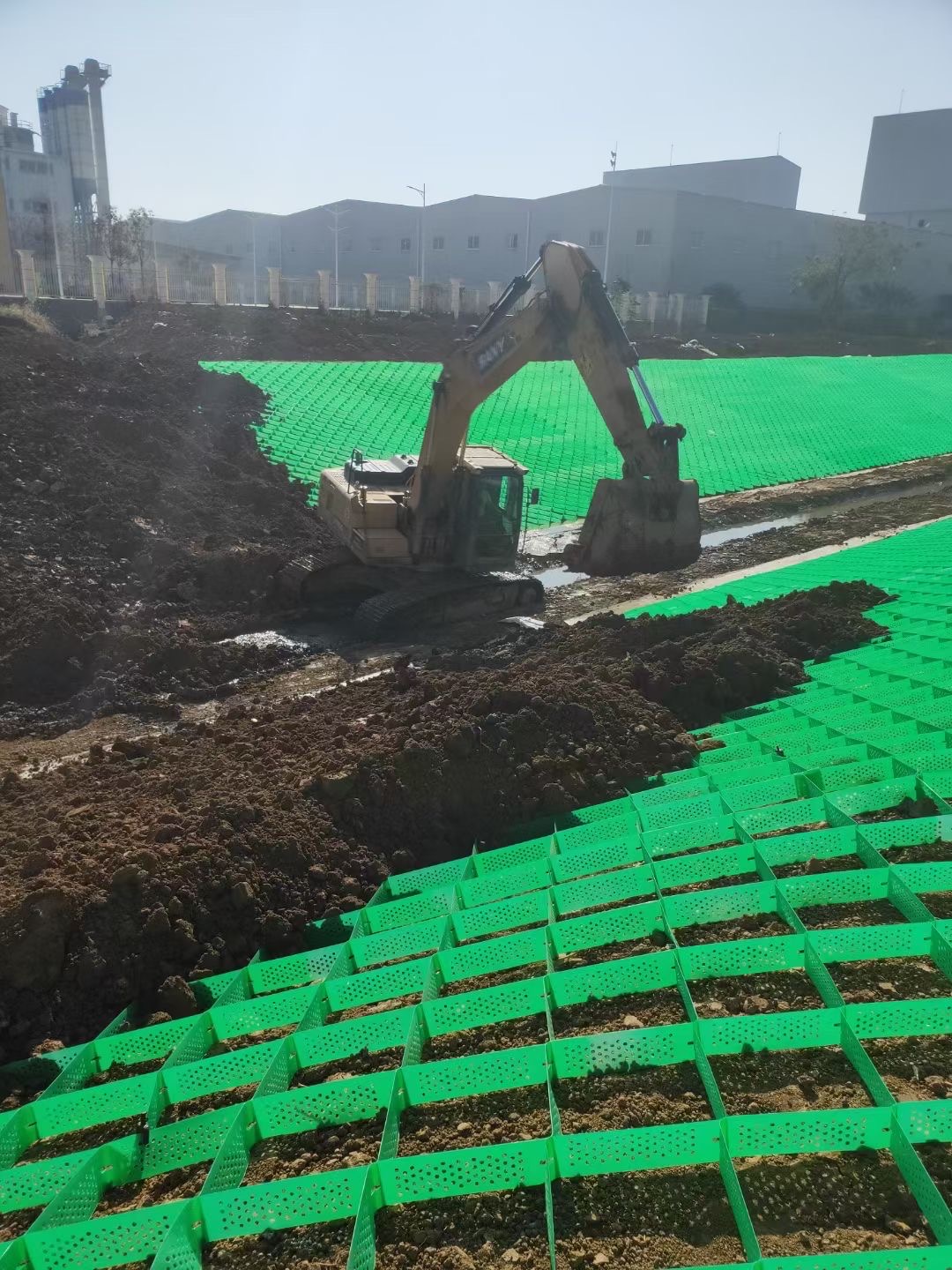

Harbin Songhua River Embankment
River Embankment 2013

Harbin Songhua River Embankment

Replaced concrete and six-sided brick facing on Songhua River embankment. After a 29-day flood event, geocell sections showed zero soil loss while vegetation recovered within 2 weeks.

29days flood
0soil loss

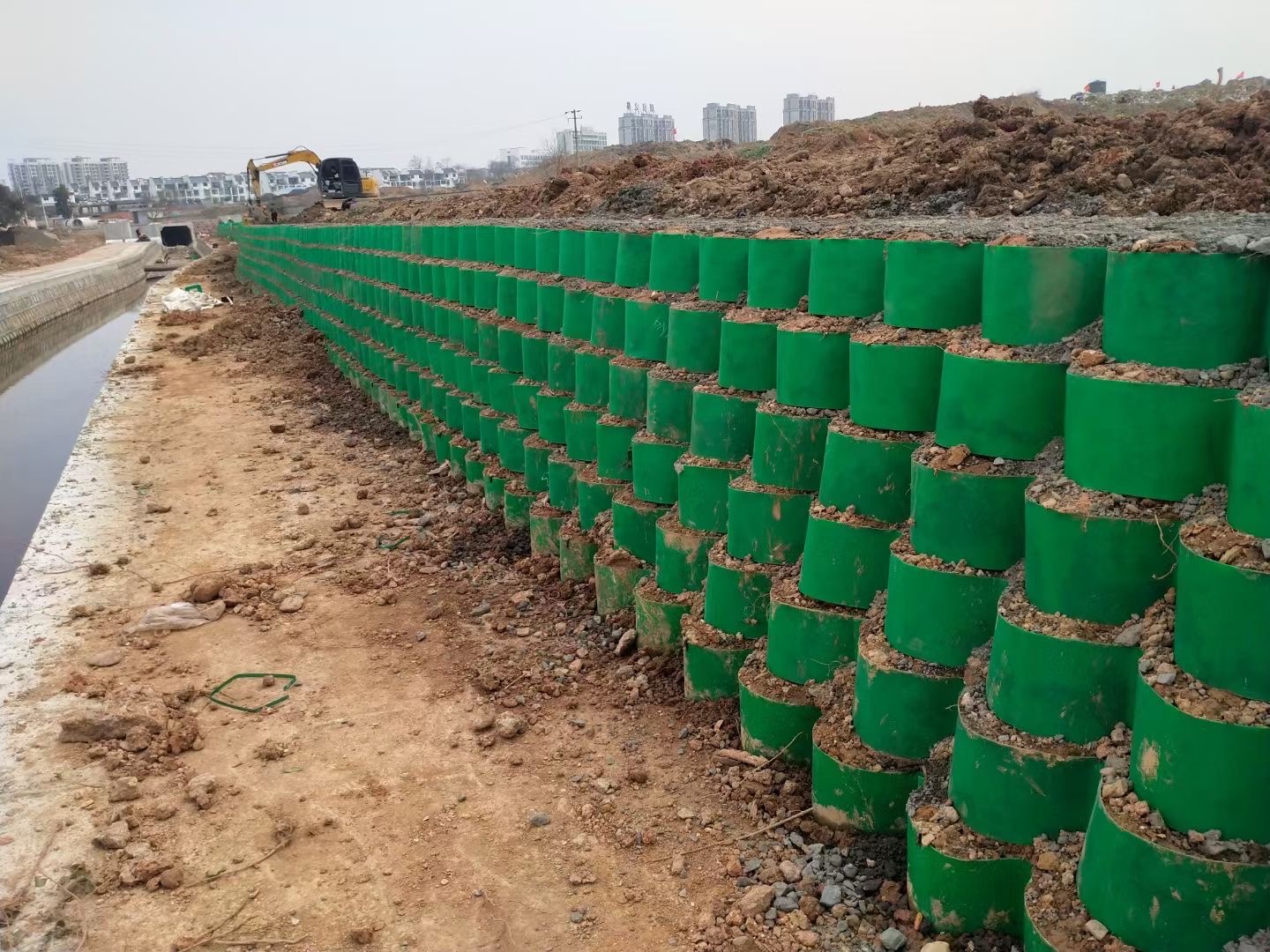

Songhua River Silt Riverbed
Foundation Reinforcement 2013

Songhua River Silt Riverbed

Silt riverbed reinforcement project enabling construction on highly unstable soft substrate. Geocell sections maintained structural integrity through a 20-day flood.

20days flood survived
Stablevs eroded reference

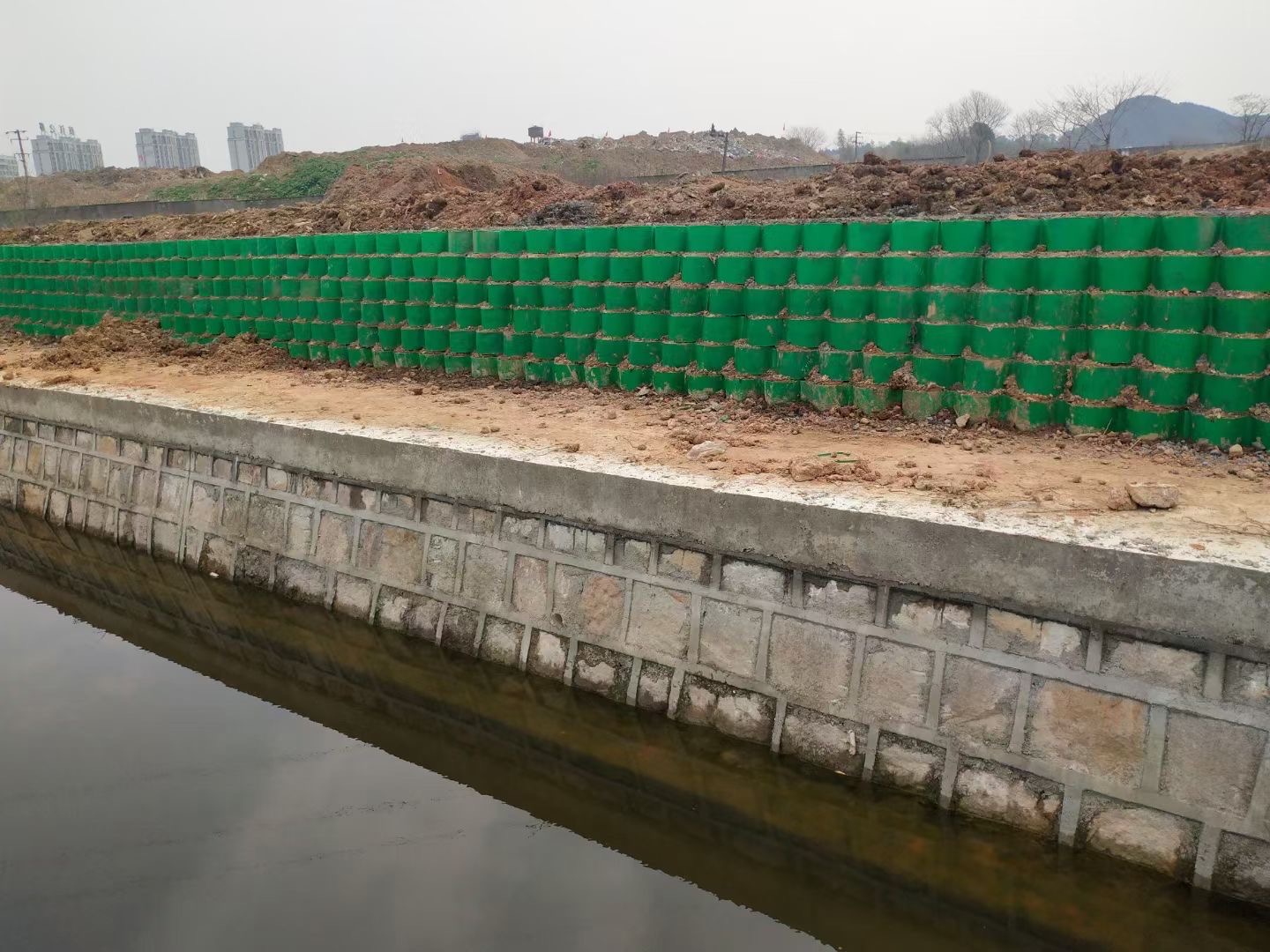

Huangni River Protection
Bank Protection 2013

Huangni River — Shangzhi City

August 2013 flood with 10 m/s peak velocity. Even unfinished geocell sections resisted water shock that caused 3–4 m erosion on the opposite unreinforced bank.

10 m/speak flow
3–4 merosion on opposite bank

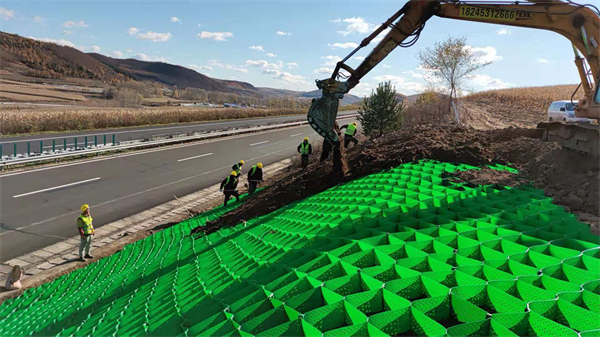

Sun Island Embankment Repair
Rapid Repair 2013

Sun Island Embankment Repair

32-meter embankment repair project completed in just 8 hours — directly replacing gabion cages. Speed of installation delivered significant project schedule savings.

8 hrsfor 32 m embankment
vs Gabionreplacement

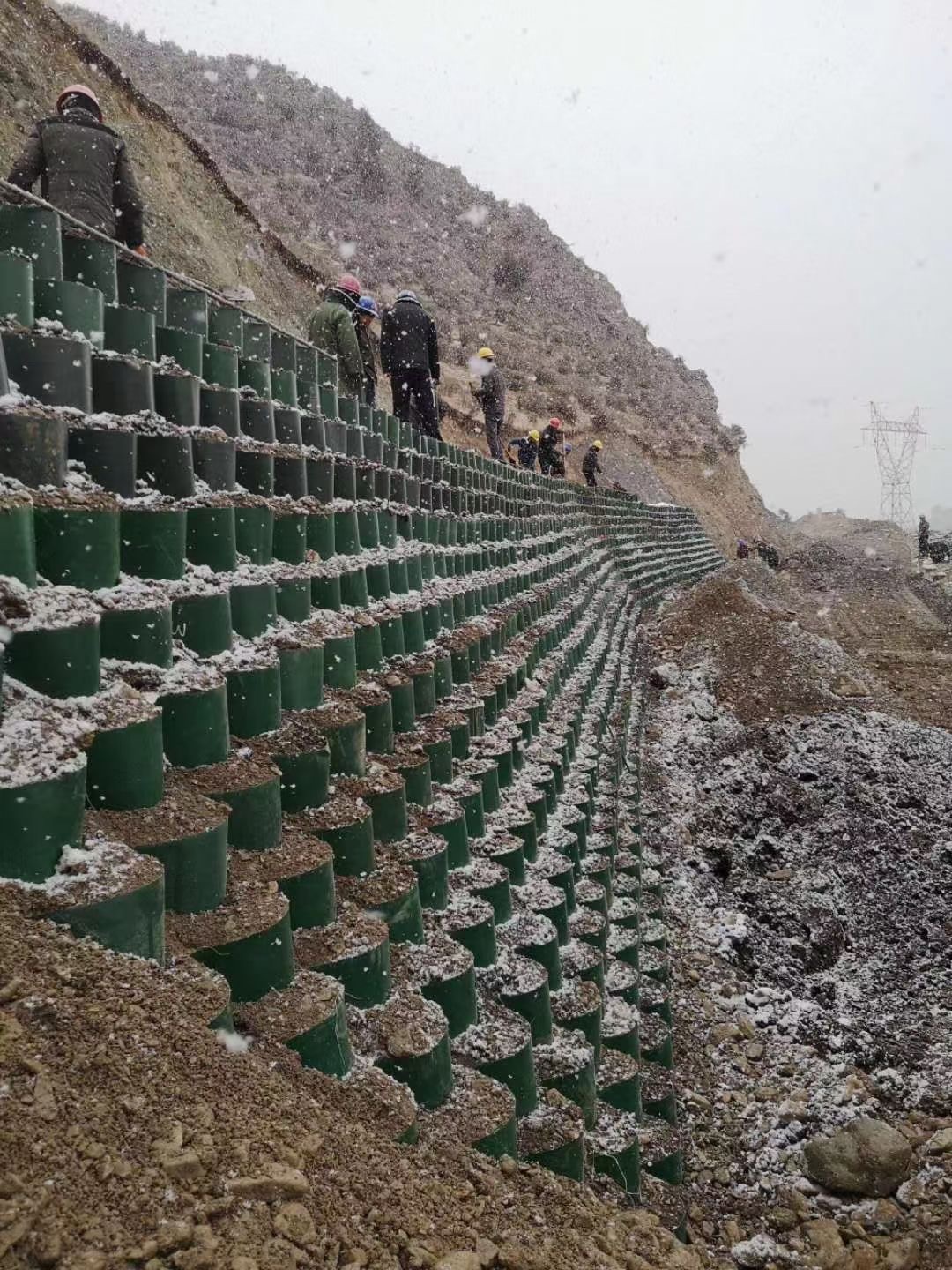

Farm Ecological Canal
Agricultural Canal Multi-Year

Farm Ecological Canal (vs. Masonry)

Comparative project alongside masonry channel. Masonry required 30 days, experienced frost-heave collapse after one winter. Geocell: 12 days, ¥500/m, 50-year lifespan.

50%cost reduction
50yrvs <10yr lifespan

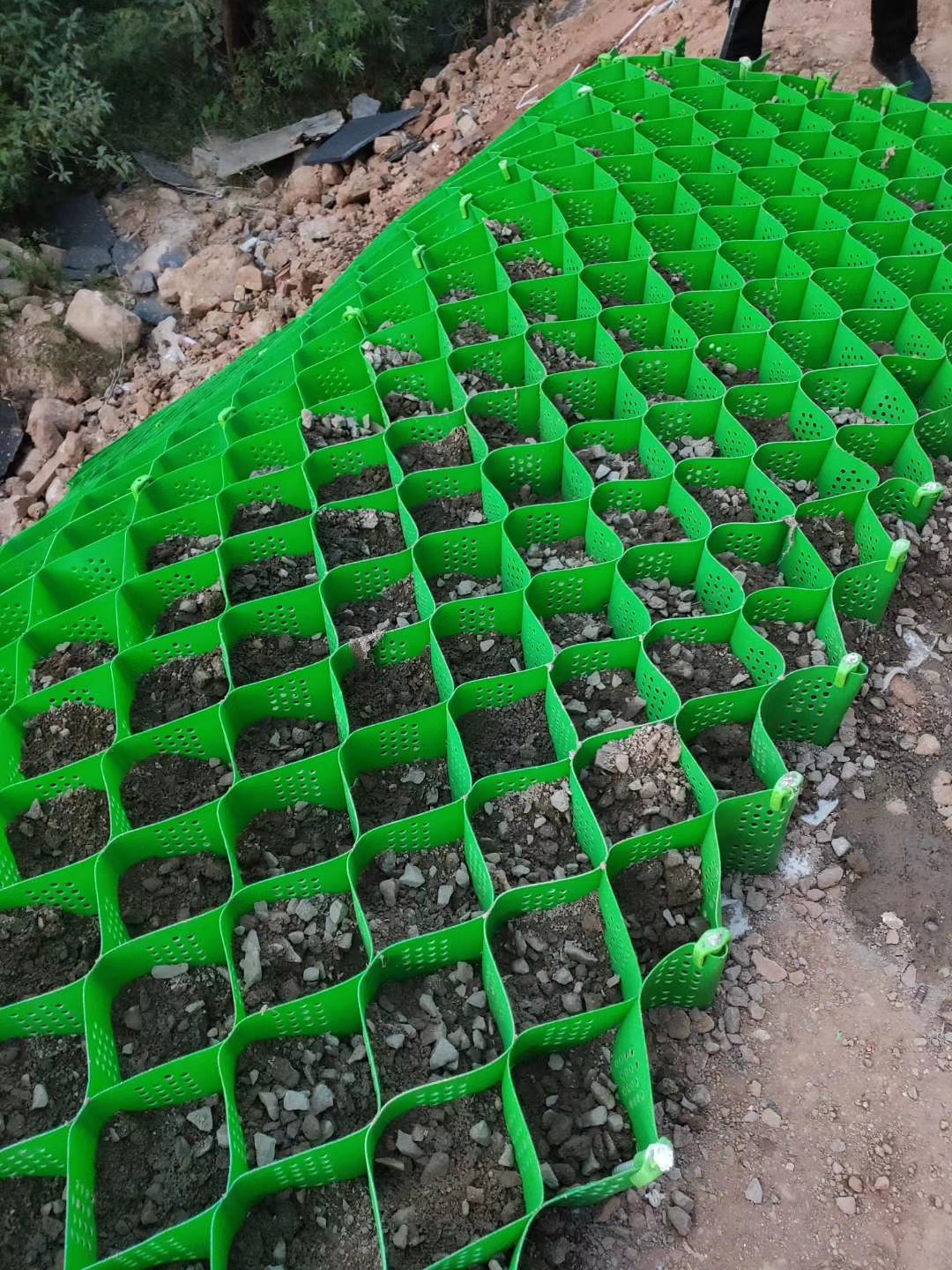

Daqing Loaded Road Project
Heavy Road Multi-Year

Daqing Loaded Road Project

Soft wet ground verified to support 60-ton truck passage. Geocell with crushed stone fill compacted to 0.9 density under actual loading conditions.

60ttruck capacity
0.9compaction ratio
