PCA Geocell Products
Polymer Nano-Composite Alloy Geocell Systems — Four models engineered for diverse load and application requirements
Product Overview
Full Specifications
Select models to compare:
| Parameter | PCA Geocell Type A | PCA Geocell Type B | PCA Geocell Type C | PCA Geocell Type D |
|---|---|---|---|---|
| Cell Height | 50 mm, 75 mm | 100 mm | 150 mm | 200 mm |
| Weld Spacing | 330 mm, 356 mm | 356 mm, 445 mm | 445 mm, 600 mm | 600 mm, 660 mm, 712 mm |
| Material | Polymer Nano-Composite Alloy (PCA) | Polymer Nano-Composite Alloy (PCA) | Polymer Nano-Composite Alloy (PCA) | Polymer Nano-Composite Alloy (PCA) |
| Tensile Strength | >=20 MPa | >=23 MPa | >=23 MPa | >=23 MPa |
| Yield Strength | >=10 MPa | >=12 MPa | >=12 MPa | >=12 MPa |
| Weld Strength | >=100 N/cm | >=120 N/cm | >=120 N/cm | >=150 N/cm |
| Elongation at Break | >=10% | >=10% | >=10% | >=10% |
| Cell Shape | Diamond / Pebble | Diamond / Pebble | Diamond / Pebble | Diamond / Pebble |
| Color | Green | Green | Green | Green |

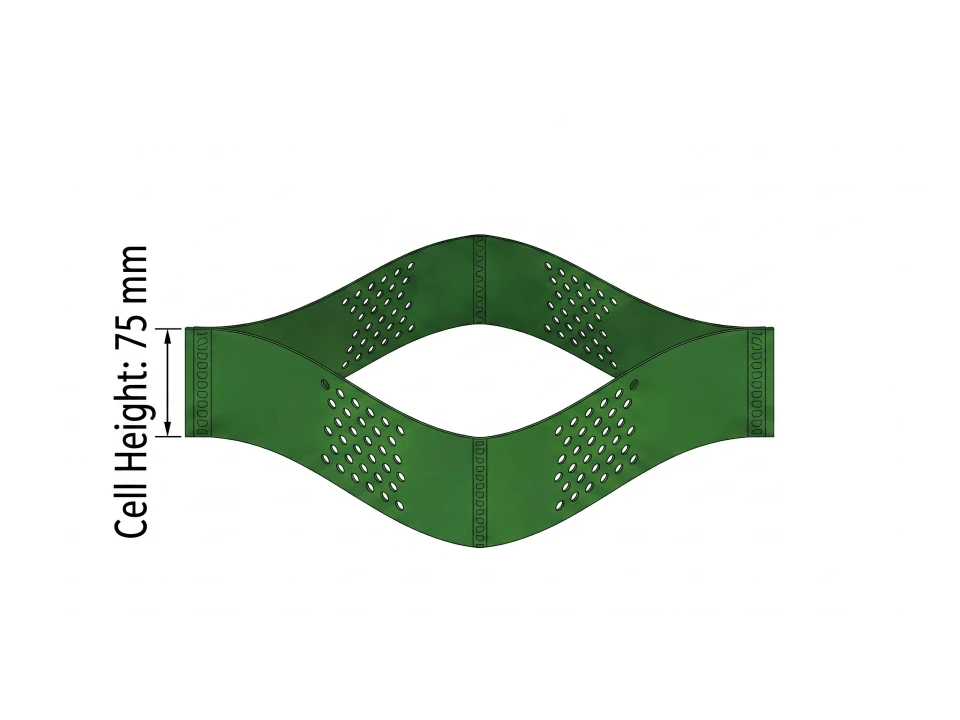

PCA Geocell Type A
Cell Height50 mm, 75 mm
Weld Spacing330 mm, 356 mm
MaterialPolymer Nano-Composite Alloy (PCA)
Tensile Strength>=20 MPa
Yield Strength>=10 MPa
Weld Strength>=100 N/cm
Elongation at Break>=10%
Cell ShapeDiamond / Pebble
ColorGreen

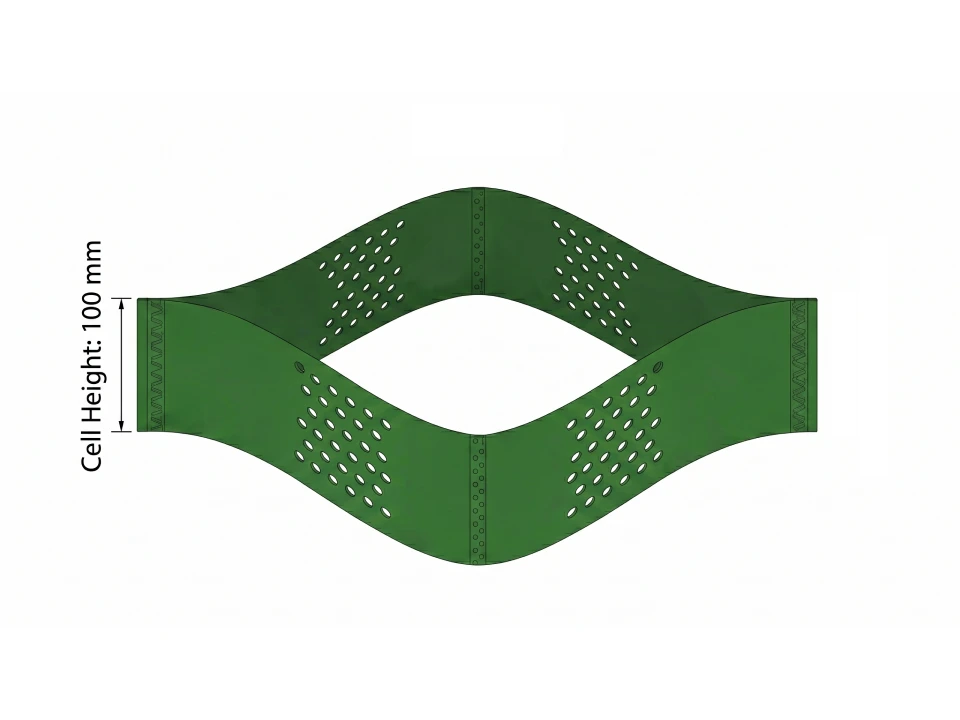

PCA Geocell Type B
Cell Height100 mm
Weld Spacing356 mm, 445 mm
MaterialPolymer Nano-Composite Alloy (PCA)
Tensile Strength>=23 MPa
Yield Strength>=12 MPa
Weld Strength>=120 N/cm
Elongation at Break>=10%
Cell ShapeDiamond / Pebble
ColorGreen

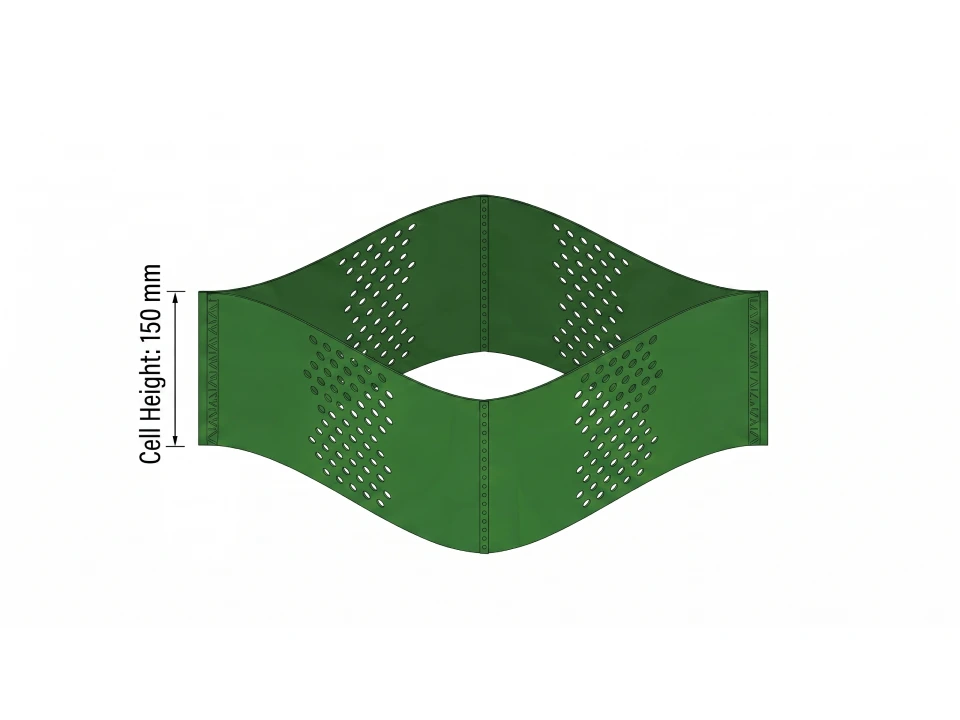

PCA Geocell Type C
Cell Height150 mm
Weld Spacing445 mm, 600 mm
MaterialPolymer Nano-Composite Alloy (PCA)
Tensile Strength>=23 MPa
Yield Strength>=12 MPa
Weld Strength>=120 N/cm
Elongation at Break>=10%
Cell ShapeDiamond / Pebble
ColorGreen

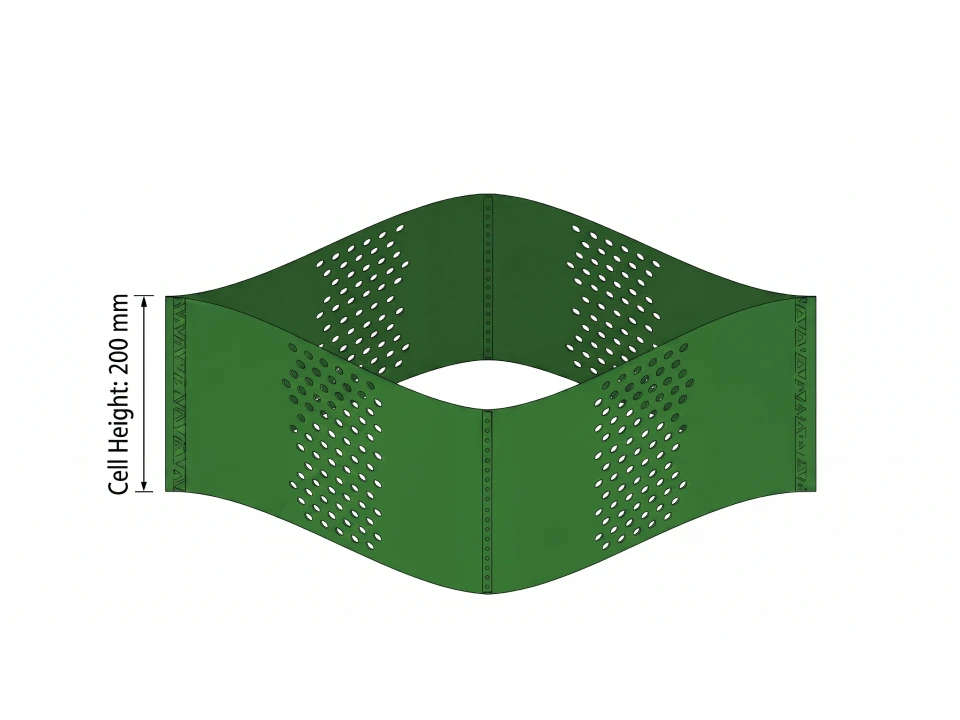

PCA Geocell Type D
Cell Height200 mm
Weld Spacing600 mm, 660 mm, 712 mm
MaterialPolymer Nano-Composite Alloy (PCA)
Tensile Strength>=23 MPa
Yield Strength>=12 MPa
Weld Strength>=150 N/cm
Elongation at Break>=10%
Cell ShapeDiamond / Pebble
ColorGreen
Rows marked with green border are critical parameters for engineering evaluation.
Applications
Type ALight to medium load, vegetation-friendly
- Slope Protection
- Embankment Reinforcement
- Green Roof
- Garden Planter
Type BMedium load, general infrastructure
- Road Subgrade
- Retaining Wall Backfill
- Channel Lining
Type CHeavy load, civil engineering
- Heavy-duty Pavement
- Channel Lining
- Landfill Liner Protection
Type DUltra-heavy load, mining & industrial
- Mining Haul Road
- Landfill Liner Protection
- Heavy-load Reinforcement
